Port Customized 1000/2000/5000/10000 Ton Steel Grain Silo System With Factory Wholesale Price

1.0 set
MOQ
Port Customized 1000/2000/5000/10000 Ton Steel Grain Silo System With Factory Wholesale Price
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 3 years
Core Components: silo, bucket elevator, scraper conveyor
Condition: New, New
Material: Steel
Dimension(L*W*H): As per grain silo
Weight: As per grain silo
Warranty: 3 years
Key Selling Points: customized design
Product name: Nord brand grain silo
Key words: Grain silo
MOQ: 1 set with customized design
Raw material brand: HANSTEEL hot galvanized steel plates
Galvanization: 275g/m2 ~ 600g/m2
Silo type: 50~1500t hopper silo and 1000~10000t flat silo
Silo design lifespan: 25 ~ 35 years
Auxiliary system: bucket elevator/scraper conveyor /grain monitor/electric control
Installation: Supervise / dispatch engineer site service
Application: Port, food/feed factory, commercial transit center
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard ocean shipping packing for fixing and anti-moisture for grain silo
Supply Ability: 100 Set/Sets per Month
Περιγραφή προϊόντων
Customized 1000 / 2000 / 5000 / 10000 ton steel grain silo system with factory direct price
You need steel silo in below situation:
Nord 50 ~ 15000 ton (single) galvanized steel silo widely used in:
*** Port                                           *** Commercial transit center
*** Rice milling plant                   *** Oil plant
*** Feed mill plant                        *** Modern farm
*** Flour milling plant                 *** Boiler plant

Customized overall storage solution for:
Corn / paddy rice / wheat / soybean / rice husk / plastic granules / feed pellet silo etc.

Flat Bottom Steel Silos

Capacity ranges 1000ton ~ 15000ton
Silo group can be built

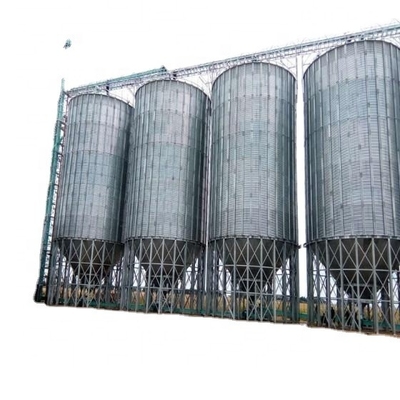

Hopper Bottom Steel Silos

Capacity ranges 50ton ~ 1500ton
Silo group can be built

About NORD

1- Nord devotes to provide reliable and advanced solution for grain silo, cement silo, fly ash silo, clinker silo, slag powder silo, etc. integrated system.
2- We own mature and full profession technical team who deeply developing in cement industry, they clearly performs engineering process design, structure calculation, project construction and management, and after sales service to secure the successful
implementation of projects.
3- Awarded the title of high-tech enterprise, and own full qualifications to undertake EPC project, conclude 8 invention patentsand 17 utility patents. /grain silo/
Know-how silo details and manufacture
Reliable silo to work more than 30 years
* Kinds of silo part (roof beam, stiffeners, wall plates, ring beam, hopper and support legs) are designed to stand up geological load, material load and equipment load etc. to secure safety.
* Raw material quality guaranteed -- constructed by 275g/m2 hot galvanized steel which from HANSTEEL.
450g/m2 and 600g/m2 galvanization also can be customized.
* Qualified and strong bolts and nuts.
* Roof plates, wall plates, hopper, ring beam, stiffeners, support legs etc. fabricated by advanced manufacture process. /grain silo/

Silo Overall View
Silo roof construction
Solid silo body
Solid silo hopper construction
Precious construction
Truck loading silo

Rich experience engineers design the silo system for you.
Integrated silo system composed of:
Grain receiving and pre-cleaning system
Feeding into silo
Storage silo
Silo unloading and distribution
Connect downstream process line
Grain temperature and moisture monitoring system
PLC control system etc.
PRODUCT SPECIFICATIONS
Model
Capacity
Volume
Diameter
No. of wall plate rings
Peak height
Silo type
TCZK04506
100 ton
131 m3
4.584 m
6 rings
11.41 m
Hopper bottom
TCZK08210
500 ton
718 m3
8.25 m
10 rings
18.87 m
Hopper bottom
TCZK11011
1000 ton
1452 m3
11 m
11 rings
22.07 m
Hopper bottom
TCK12813
1500 ton
2052 m3
12.834 m
13 rings
18.36 m
Flat bottom
TCK13715
2000 ton
2701 m3
13.75 m
15 rings
20.87 m
Flat bottom
TCK15518
3000 ton
4145 m3
15.584 m
18 rings
24.78 m
Flat bottom
TCK20117
5000 ton
6724 m3
20.168 m
17 rings
24.62 m
Flat bottom
TCK24718
8000 ton
10879 m3
24.751 m
18 rings
26.99 m
Flat bottom
Rich experience installation

NORD engineering team is your strong support to undertake installation work:

* If you want to install by yourself, detailed construction instructions and structure drawing which match delivered goods make Number will be provided. Our engineers answer questions online at any time.
* Also can dispatch skilled engineer to supervise and coordinate your local workers installation.
* Whole installation team also can be dispatched to undertake whole installation work. /grain silo/
Customized 1000 / 2000 / 5000 / 10000 ton steel grain silo system with factory direct price
